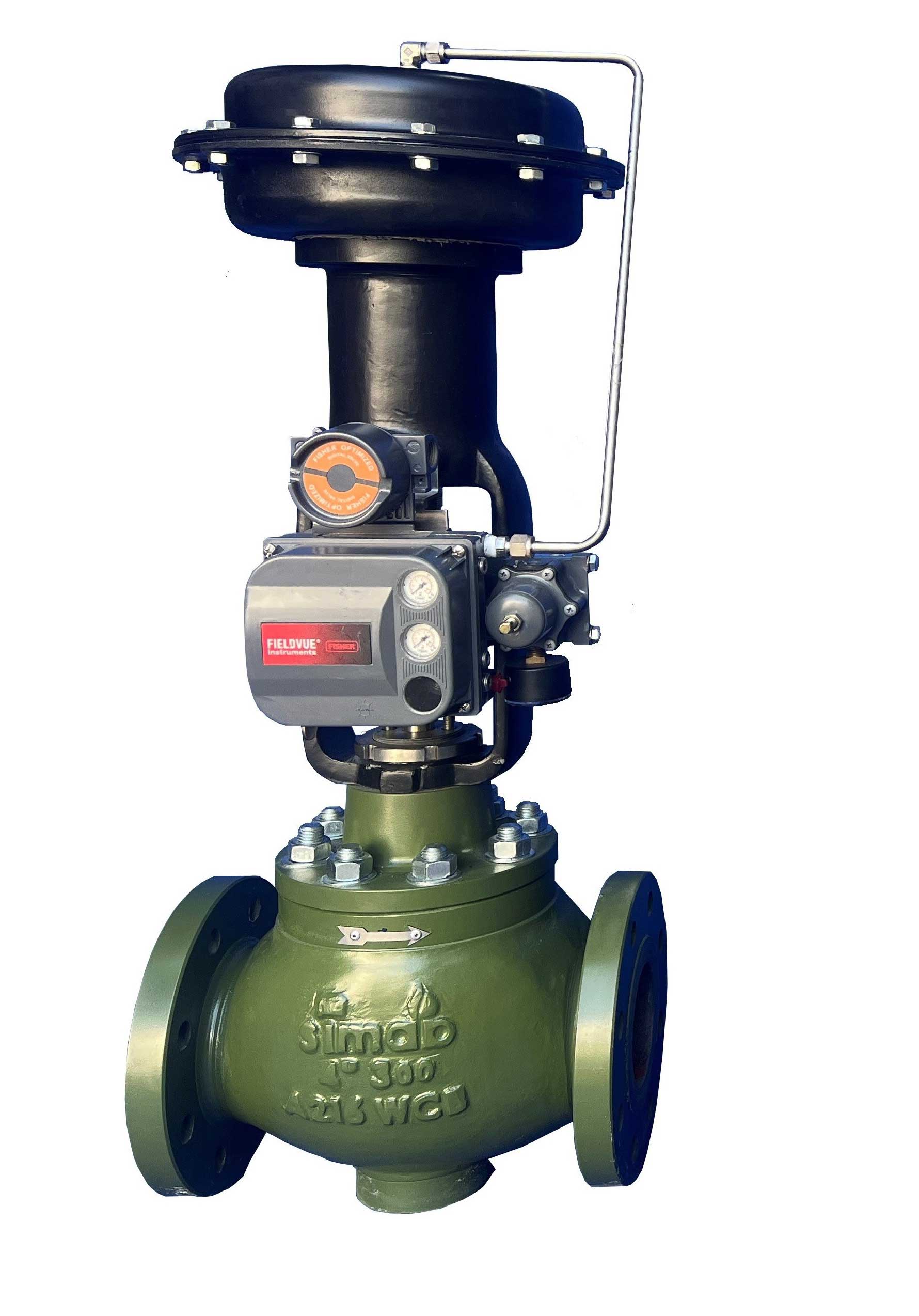

Single Port Globe Control Valves
➤ Body Style
Straight way globe valve, Angle type, Jacket type
➤ Bonnet Style
Plain (Standard)
Fin & Extension
Bellows Seal
Long Extension (Cryogenic Service)
➤ Size Range
2" to 24"
➤ Rating and Connections
ANSI 150-2500
RF/FF/RTJ Flange
Butt Weld
Socket Weld
➤Body/Bonnet Materials
Carbon Steel (WCB, WCC, A105,...)
Stainless Steel (CF8, CF8M, CF3, CF3M,...)
Chrome-moly Steel (WC6, WC9,...)
➤Actuators
Pneumatic Spring Diaphragm Actuators, Pneumatic Piston Actuators
➤Inherent Characteristics
Linear, Equal Percentage, Modified Equal Percentage
➤ Trim Style
unbalanced -Guided trim
Low-Noise Drilled Hole Cage (single & multi stages)
Anti-Cavitation Channel Cage (single & multi stages)
Labyrinth Disk Stack
➤ Seat Leakage
Standard: Class IV
Optional: Class V
Soft Seat: Class VI
➤Trim Material
316 SS, 316 SS + Stellite #6
Hardend 410 SS/440C SS
17-4PH, F22 (Nitride treatment), F51
Inconel 718, XM19
Solid Tungsten Carbied Etc.
